HOT ! TYGA PERFORMANCE タイガパフォーマンス レーシングバックステップキット KTM RC390 2022-2023 バックステップ ステップ 足回り

■詳細説明

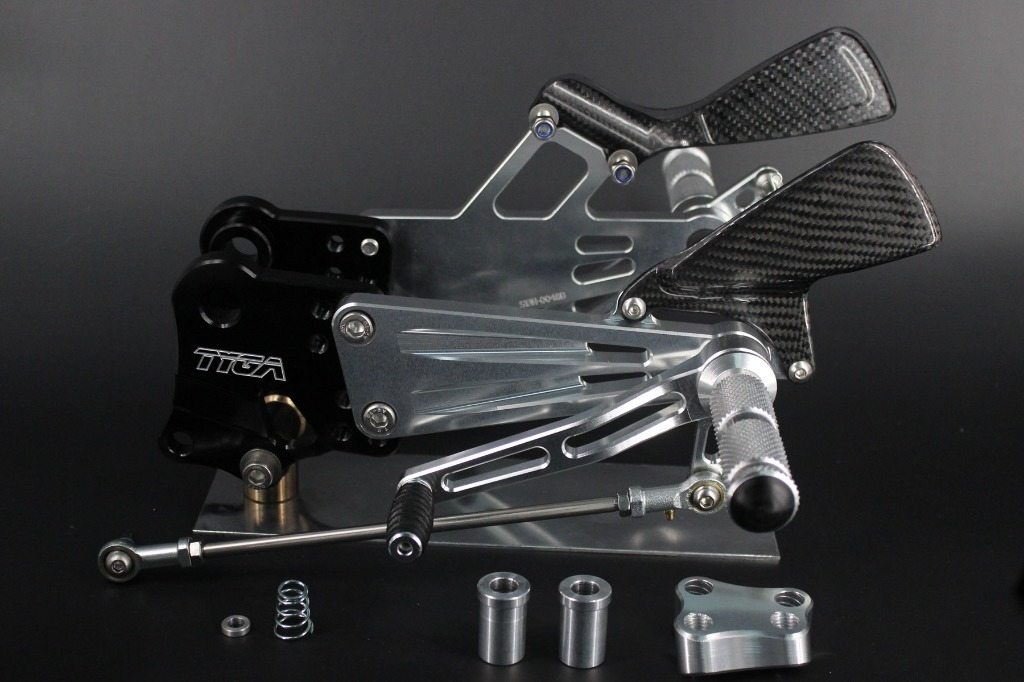

Step Kit (Street)，(Adjustable)，KTM RC390 2022-2023
STAA-0037 (Street)
Designed in-house by TYGA Performance using the latestCAD／CAMsoftware，these CNC machine-made step kits are made from topqualityaircraft grade aluminium. Complete with carbon heelguard onleftand right hanger.
Race shift possible by reversing the gear change arm. Noothermodification necessary other than adjustment of the linkrod.
Peg position is 25／40mm. up and 15／30mm. back＊.
Brake light is operated by standard pressure switch.
Provision for the side stand is provided.
Fitting the TYGA Step Kit for the KTM RC390 requires thattheswingarm axle be removed from the machine，which can renderthevehicle unstable. Having an assistant can be very usefulduringremoval and fitting of the axle.
Fitting Instructions ：
＊ Peg position can be adjusted to four positions by 2x M8boltsattaching the hanger plate to the main plate. After apositionchange，adjustment of the gear change arm and link rodlength willbe necessary. For your safety. please ensure allfasteners aretight before use，and we recommend the use of threadlocking agent(such as Loctite 242) on the 2x M8 bolts.
Note，this RC390 kit will probably fit the RC125 and RC200frame.However，right now，we don’t have information on any issueswith thegear link road or any differences between the RC modelswhich mightaffect the fitment of this kit to the other models.
This product contains the following items：
2 × (STAP-0001) Tyga Step Kit Replacement Foot Peg(LongType)，Assy.
1 × (STAL-0001) Tyga Step Kit Replacement Rear Brake Lever
1 × (STAL-0002) Tyga Step Kit Replacement Gear Shift Lever
1 × (STRE-0006) Tyga Step Kit Replacement M6 RH F. RodEndSIBP6S
1 × (STRE-1006) Tyga Step Kit Replacement M6 LH F. RodEndSILBP6S
1 × (BPCC-9007) Heel Guard，Carbon，Left，Replacement
1 × (BPCC-9008) Heel Guard，Carbon，Right，Replacement
1 × (STAR-0205) Tyga Step Kit Replacement Link Rod，205 mm.
1 × (NUBO-0002) Tyga Step Kit Replacement R Clip
1 × (STAC-0012) Tyga Step Kit Replacement Brake Link，KTM
1 × (STAH-0048B) Tyga Step Kit Replacement Right SideHanger，(Adj.)KTM RC125／200／250／390 Assy.
1 × (STAH-0047B) Tyga Step Kit Replacement Left SideHanger，(Adj.)KTM RC125／200／250／390 Assy.
1 × (STAH-0048A) Tyga Step Kit Replacement Right SideHangerMount，(Adj.) KTM RC125／200／250／390 Assy.
1 × (STAH-0047A) Tyga Step Kit Replacement Left SideHangerMount，(Adj.) KTM RC125／200／250／390 Assy.
1 × (STAH-0047C) Tyga Step Kit Replacement SidestandSpacer，KTMRC390
1 × (BPSY-0150) Stay，Lever Stopper，KTM RC，Step Kit
1 × (STHB-0042) Tyga Step Kit Replacement Bush，42mm
1 × (STHB-0070) Tyga Step Kit Replacement Bush，70mm
1 × (STHB-0072) Tyga Step Kit Replacement Bush，72mm
2 × (HBST-10100) Bolt，M10 × 1.5 × 100mm
1 × (TYLY-0307) Chain Slider，KTM RC390 2014-2021


■注意点
※画像には他の商品が含まれている場合があります。
※取扱説明書が付属する場合は外国語となります。
※輸入商材の為、納期が遅れる場合がございます。あらかじめご了承ください。
※メーカー都合により商品の仕様変更がある場合がございます。ご了承ください。


　※画像はイメージです。
■適合車種
RC390
 RC390 年式: 22-23


ブランド名:TYGA PERFORMANCE
メーカー型番:STAA-0037
代表カラー:-
